Dirt Bikes

2023 KTM 300 SX Technical Information

Features and specifications of KTM’s all-new fuel-injected 300 two-stroke.

Updated: January 28, 2023

KTM continues to roll out exciting new dirt bikes every year. Its entire full-size motocross lineup is completely revamped for 2023 with the addition of a new model that has captured the most limelight—the 300 SX. This open-class-worthy premix-burner features a combination of technology not seen on most two-stroke motocross models including throttle body injection (TBI), an electronic power valve, and electric starting. Before we publish our initial on-track evaluation of this exciting new model, let’s dig into its many features and specifications.

KTM’s two-stroke motocross bike lineup grows by one in 2023 with the addition of the 300 SX.Mark Kariya

Throttle body injection (TBI), an electronic power valve, and electric starting are huge technological advancements to the Austrian manufacturer’s all-new top-of-the-line two-stroke MX machine.Mark Kariya

A Keihin 39mm throttle body is paired with case reed induction. Fuel needs to be premixed at 60:1.Mark Kariya

Kickstarters are a thing of the past on KTM’s full-size two-stroke motocrossers. Claimed weight of the 300 SX engine is 53 pounds.Mark Kariya

Engine start and engine stop buttons are combined on one unit, just within thumb’s reach.Mark Kariya

On the opposite side of the Neken handlebar, we find the new engine map switch. Map 1 (white light illuminated) is standard, while map 2 (green light illuminated) is aggressive.Mark Kariya

Proper airbox ventilation.Mark Kariya

Gearing is 14/49.Mark Kariya

KTM spec’d a new radiator cap on its 2023 full-size motocross and cross-country models that is quite difficult to remove.Mark Kariya

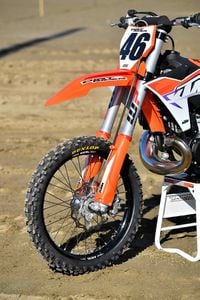

The WP Xact 48mm air fork is the same component found on the Austrian manufacturer’s prior-generation (2019–2022) motocrossers, but features different settings and new hydrostops for better bottoming resistance.Mark Kariya

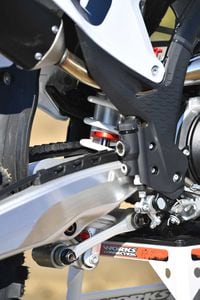

Along with being 15mm shorter, the completely redesigned WP Xact shock features all-new internals.Mark Kariya

Shock low-speed compression, high-speed compression, and rebound damping are adjustable by hand.Mark Kariya

For reduced unsprung weight and increased rigidity, KTM designed a new, hollow, die-cast swingarm.Mark Kariya

Brembo brake calipers help slow the smoker. The front is a two-piston caliper that grabs a 260mm disc, while the rear is a single-piston caliper that squeezes a 220mm disc.Mark Kariya

We appreciate that KTM specs an hourmeter on all of its full-size motocross and off-road competition models to help keep track of maintenance intervals.Mark Kariya

On Dirt Rider’s automotive scales, the 2023 KTM 300 SX weighs 232 pounds wet.Mark Kariya

2023 KTM 300 SX Specifications

MSRP:	$9,199
Engine:	Liquid-cooled, two-stroke single-cylinder
Displacement:	293cc
Bore x Stroke:	72.0 x 72.0mm
Compression Ratio:	N/A
Transmission/Final Drive:	5-speed/chain
Dirt Rider Measured Horsepower:	48.8 hp @ 8,100 rpm
Dirt Rider Measured Torque:	32.2 lb.-ft. @ 7,500 rpm
Fuel System:	EFI w/ 39mm throttle body
Clutch:	Wet, multiplate Damped Diaphragm Steel (DDS); hydraulic actuation
Frame:	Central double-cradle chromoly steel
Front Suspension:	WP Xact 48mm fork, air pressure, compression damping, and rebound damping adjustable; 12.2 in. travel
Rear Suspension:	WP Xact shock, spring preload, high-/low-speed compression damping, and rebound damping adjustable; 11.8 in. travel
Front Brake:	Brembo 2-piston caliper, 260mm disc
Rear Brake:	Brembo 1-piston caliper, 220mm disc
Tires, Front/Rear:	Dunlop Geomax MX33; 80/100-21 / 110/90-19
Rake/Trail:	26.1°/NA
Wheelbase:	58.7 in.
Ground Clearance:	13.9 in.
Dirt Rider Measured Seat Height:	37.7 in.
Fuel Capacity:	1.9 gal.
Dirt Rider Measured Wet Weight:	232 lb.
Availability:	Now
Contact:	ktm.com
