2024 Triumph TF 250-X Technical Information

Triumph’s first-ever motocross bike is finally here.

February 28, 2024

The Triumph TF 250-X has officially arrived. We’ve seen pictures, videos, and even Jalek Swoll and Evan Ferry racing it in the 2024 AMA Supercross series. Now, we finally get a more detailed look at this new motocross bike from the United Kingdom. Scroll down to get up close and personal with the 2024 Triumph TF 250-X, and learn more about its features and specifications.

The black and white with yellow accents gives the 2024 Triumph TF 250-X a clean look.Triumph

In the 250F division, power is a huge factor. Triumph designed its fuel-injected liquid-cooled DOHC four-stroke 250cc single-cylinder engine to have the broadest, most usable, and highest peak power in class. The British manufacturer claims the TF 250-X produces 47.3 hp and 21.1 lb.-ft. of torque.Triumph

The DOHC cylinder head uses finger followers to reduce valve train weight, and the connecting rod features a plain bearing design, all to aid in increasing peak power and rpm.Triumph

The TF 250-X uses a traditional close-ratio five-speed gearbox.Allan Brown

Power delivery starts at the air filter and airbox. It’s no surprise the TF 250-X uses a Twin Air filter. The airbox features a vented cover standard, and a non-vented cover is included with the bike for extreme conditions.Triumph

The stock exhaust system features an integrated Helmholtz resonance chamber on the header and an additional side resonator in the muffler. The silencer is bolted together, making it easier to service.Allan Brown

Akrapovič has developed a full titanium Evolution Line exhaust system that’s said to be 1 pound lighter than stock and provide a strong increase in power from 9,000–13,000 rpm. Triumph also includes an Akrapovič-specific engine map via its MX Tune Pro app.Triumph

Regulating how much fuel and air enters the engine is a Dell’Orto 44mm throttle body with a single Keihin vertically pointed injector spraying fuel into the intake tract.Allan Brown

As is the case with some other manufacturers, Triumph specs a Brembo hydraulic clutch system.Allan Brown

The clutch pack is controlled by a Belleville spring.Allan Brown

Electronics are controlled with a Get ECU and various features. You can connect to the ECU wirelessly to load an additional 10 predesigned maps, monitor the EFI system, read sensor values, and check fault codes via Triumph’s MX Tune Pro app.Triumph

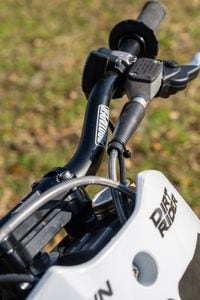

The handlebar-mounted switch on the left allows you to quickly turn on launch control (LC), quickshift (QS), traction control (TC), and switch between two preloaded EFI maps.Triumph

A compact engine start-and-stop switch is located on the right side of the handlebar, which features a malfunction indicator lamp (MIL) that illuminates if the ECU detects a fault.Allan Brown

KYB was chosen to handle suspension duties. The Air-Oil Separate (AOS) 48mm closed-cartridge coil-spring fork offers compression and rebound damping adjustability. Spring rate is 4.7 Nm in both legs.Allan Brown

The KYB shock features low- and high-speed compression and rebound damping adjustability. Spring rate is 56 Nm.Triumph

The TF 250-X swingarm’s hydroformed beams have a unique shape.Triumph

Brakes are controlled with Brembo hydraulics clamping on Galfer rotors. Front disc is 260mm in diameter and the rear is 220mm.Triumph

Designed by Triumph, the hubs are cast to be lightweight and machined to the British manufacturer’s final dimensions.Triumph

D.I.D DirtStar 7000 series aluminum rims are paired with Pirelli Scorpion MX32 Mid Soft tires front and rear.Triumph

ProTaper’s ACF handlebar is one of the many high-end components spec’d on the TF 250-X. It rests in bar mounts connected to Neken 7075-T6 forged and fully machined aluminum triple clamps.Triumph

An hourmeter is nicely tucked behind the front number plate.Triumph

The 2024 Triumph TF 250-X is available in Triumph Racing yellow/black/white with an MSRP of $9,995. It will be on dealership floors in March 2024.Allan Brown

2024 Triumph TF 250-X Specs

MSRP:	$9,995
Engine:	DOHC, liquid-cooled single-cylinder; 4 valves/cyl.
Displacement:	250cc
Bore x Stroke:	78.0 x 52.3mm
Compression Ratio:	14.4:1
Transmission/Final Drive:	5-speed/chain
Fuel System:	Dell’Orto EFI w/ 44mm throttle body
Clutch:	Wet, multiplate; hydraulic actuation
Frame:	Double-cradle aluminum
Front Suspension:	KYB Air-Oil Separate (AOS) 48mm closed-cartridge coil-spring fork, compression and rebound damping adjustable; 12.2 in. travel
Rear Suspension:	KYB shock, spring preload, high/low-speed compression damping, and rebound damping adjustable; 12.0 in. travel
Front Brake:	Brembo 2-piston caliper, 260mm disc
Rear Brake:	Brembo 1-piston caliper, 220mm disc
Tires, Front/Rear:	Pirelli Scorpion MX32 Mid Soft; 80/100-21 / 100/90-19
Rake/Trail:	27.4°/4.6 in.
Wheelbase:	58.7 in.
Ground Clearance:	N/A
Claimed Seat Height:	37.8 in.
Fuel Capacity:	1.8 gal.
Claimed Wet Weight:	229 lb.
Availability:	March 2024
Contact:	triumphmotorcycles.com
